metrivis::RequestDispatcher Class Reference

Dispatches a HTTP request. More...

#include <RequestDispatcher.h>

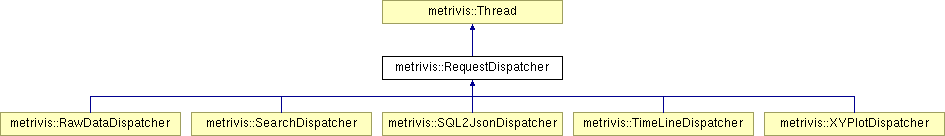

Inheritance diagram for metrivis::RequestDispatcher:

Public Member Functions
	RequestDispatcher (int clone_id)
	Default constructor.
virtual	~RequestDispatcher ()
	Deconstructor.
void	set_request_description (const RequestDescription &description)
	Interface to memeber variable request_description.
const RequestDescription &	request_description () const
	Interface to memeber variable request_description.
Protected Member Functions
virtual void	Run ()
	Thread internal run function.
int	SendHTTPImage (const std::string &image_data)
	Sends a PNG image back to the client as HTTP reply.
int	SendHTTPPlainText (const std::string &plain_text)
	Sends a plain text back to the client as HTTP reply.
int	SendHTTPText (const std::string &http_text)
	Sends a html formated text back to the client as HTTP reply.
int	SendJSONText (const std::string &json_text)
	Sends a JSON text back to the client as HTTP reply.
Protected Attributes
Pipeline *	pipeline_
	The pipeline that will be executed in the subclass.
RequestDescription	request_description_
	The HTTP request description.
Private Member Functions
int	SendHTTPReplyRaw (const std::string &message, const std::string &type)
	Sends a HTTP reply message back to the client.

---

Detailed Description

Dispatches a HTTP request.

MetriVis will use a RequestDispatcher for every type of request that it may handle. HTTPDriver will get the HTTP request, check if there is a handler registered that will send the request to this RequestDispatcher class.

If you want to handle your own HTTP request you will want to create a subclass from this RequestDispatcher.

See also:

XYPlotDispatcher

RawDataDispatcher

You will never directly use the RequestDispatcher class but instead work with it's subclasses.

---

Constructor & Destructor Documentation

metrivis::RequestDispatcher::RequestDispatcher

(

int

clone_id

)

Default constructor.

Doesn't do anything.

Default constructor. See header file for overview.

metrivis::RequestDispatcher::~RequestDispatcher

(

)

[virtual]

Deconstructor.

Doesn't do anything.

Grounds all variables to initial values to minimize lucky post-mortem usage. See header file for overview.

---

Member Function Documentation

void metrivis::RequestDispatcher::set_request_description

(

const RequestDescription &

description

)

[inline]

Interface to memeber variable request_description.

Parameters:

description,:

Sets the request description to handle.

const RequestDescription& metrivis::RequestDispatcher::request_description

(

)

const [inline]

Interface to memeber variable request_description.

Returns:

The request description handeled by this dispatcher.

void metrivis::RequestDispatcher::Run

(

)

[protected, virtual]

Thread internal run function.

Doesn't do anything. Overload in subclasses.

See header file for overview.

Implements metrivis::Thread.

Reimplemented in metrivis::RawDataDispatcher, metrivis::SearchDispatcher, metrivis::SQL2JsonDispatcher, metrivis::TimeLineDispatcher, and metrivis::XYPlotDispatcher.

int metrivis::RequestDispatcher::SendHTTPImage

(

const std::string &

image_data

)

[protected]

Sends a PNG image back to the client as HTTP reply.

Parameters:

image_data,:

The PNG image data saved in a string.

Sends an PNG image back to the client. After this call returns, the data will be transmitted and the connection will be closed.

See header file for overview.

int metrivis::RequestDispatcher::SendHTTPPlainText

(

const std::string &

plain_text

)

[protected]

Sends a plain text back to the client as HTTP reply.

Parameters:

image_data,:

The plain text data saved in a string.

Sends a plain text back to the client. After this call returns, the data will be transmitted and the connection will be closed.

See header file for overview.

int metrivis::RequestDispatcher::SendHTTPText

(

const std::string &

http_text

)

[protected]

Sends a html formated text back to the client as HTTP reply.

Parameters:

image_data,:

The http text data saved in a string.

Sends a http formated text back to the client. After this call returns, the data will be transmitted and the connection will be closed.

See header file for overview.

int metrivis::RequestDispatcher::SendJSONText

(

const std::string &

json_text

)

[protected]

Sends a JSON text back to the client as HTTP reply.

Parameters:

image_data,:

The http text data saved in a string.

Sends a json formated text back to the client. After this call returns, the data will be transmitted and the connection will be closed.

See header file for overview.

int metrivis::RequestDispatcher::SendHTTPReplyRaw	(	const std::string &	message,
		const std::string &	type
	)			[private]

Sends a HTTP reply message back to the client.

Parameters:

	message,:	The message to be sent to the client as a string, raw data.
	type,:	String expressing the HTTP file type.

See header file for overview.

---

The documentation for this class was generated from the following files:

• src/RequestDispatcher.h
• src/RequestDispatcher.cc

---
